Item |
Quantity |
|
Dual Digital PID Temperature Controller with SSR Output. |
1 |
|
Solid State Relay (40A), 24-240V AC |
1 |
|
Heat Sink (80 x 50 x 50 mm) |
1 |
|

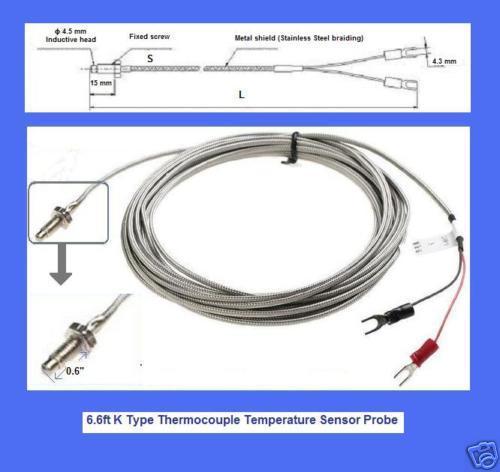

Thermocouple Sensor Probe with Fibreglass internal insulation and
Stainless Steel braided external shielding |
Ideal for use in a wide range of industries:
- This Controller has a SSR output.
- Out1 = SSR (heating side).
- It has a universal type input.
|
Control Method |
PIN control (including ON/OFF, step-type PID and
continuous PID) Self-tuning control |
|
Detective Temperature Range |
0 to 1600 °C (depends on input type) |
|
Display |
Process value (PV), Setting value (SV) Output, alarm and self-tuning can be indicated
by: LED |
|
Input Signal |
Thermocouple: K,E,S,B,J,T,R,N PT100 , RTD |
|
Accuracy |
±0.5%F.S |
|
Control Way |
Fuzzy PID control, state control manual |
|
Control Output |
- Voltage impulse output (applicable for Solid
State Relay, SSR). * Out1= SSR (heating or cooling side). |
|
Alarm Type |
High limit alarm, lower limit alarm, below lower limit alarm. |
|
|
|
|
Junction |
None |
|
|
|
|
Working Power |
AC 85 - 265V, 50-60 Hz |
|
Out Dimension |
48 x 48 x 110 mm |
|
Install Dimension |
45 x 45 mm |
|
Measurement range |
32 - 752 °F (0 - 400 °C) |
|
Cable length |
3.3 ft (1m) |
|
Sensing tip length |
1/2" (12.7mm) |
|
Fixed screw width |
1/4" |
|
Internal Insulation |
Fiberglass |
|
External shielding |
Metal Shield (Stainless steel braided |
|
Load voltage |
24 - 240V AC |
|
Load current |
40A |
|
Control voltage |
3-32V DC |
|
Control current |
6-25 mA |

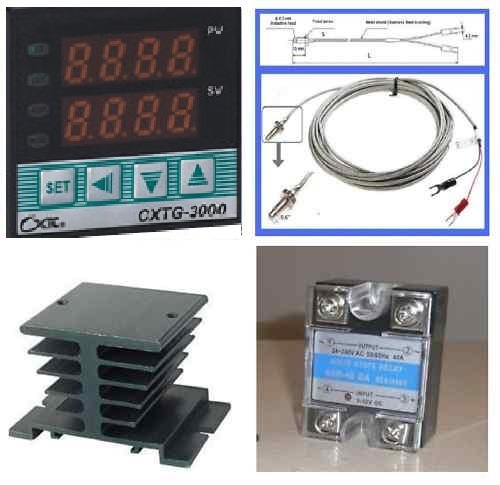

Complete Package (PID Temperature Controller Thermocouple 1 meter Probe SSR Relay 40A Heatsink)
- Product Code:CKP-DTXG
- Availability:In Stock
-
USD49.50
