This is a very practical and inexpensive Type K thermocouple, which measures high temperatures up to 1292 °F (700 °C).
-
Its detachable Locking Banana Plug can be detached from its Flat (Miniature) Pin and gives you the choice of using 2 different types of connectors.
-
Having 2 different types of connector, expands its applications and makes this thermocouple compatible with wider range of Digital Thermometers, Clamp Meters and Multimeters.
-
Its high quality probe is made of Armored Wire and is 4.00 inch (100mm) long.
-
This probe can be bent to be used for some special angles and applications.
- The Flexible Spring at probe’s end gives it more flexible moving angles.
- This Type K Thermocouple is not a Fluke or Amprobe brand, but this model fits most of the Fluke, Amprobe and more Meters/Instruments without using a thermocouple adapter (please check Plug's dimension on specification table).
- It's easy to clean and easy to use.
Specifications:
|
Thermocouple |
Type K |
|
Temperature range |
-58 – 1292 °F (-50 – 700 °C) |
|
Probe material |
Armored Wire |
|
Probe length |
100 mm (~4 inch) and flexible |
|
Probe diameter |
3 mm (~0.12 inch) |
|
Cable length |
2m (~6.6ft) |
|
Internal Insulation |
Fiberglass |
|
External Shielding |
Stainless Steel Braiding |
|
Connector Banana Plug Flat Pin |
Detachable Locking Banana Plug + Flat (Miniature) Pin 3/4" center to center spaced Outside pin to pin distance 7/16" (10mm) |

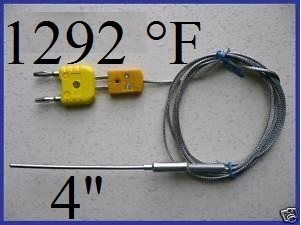

4" probe K Thermocouple -1292 °F (with flat pin and detachable banana plug)
- Product Code: TI-BF-4-1292
- Availability: In Stock
-
USD13.99
