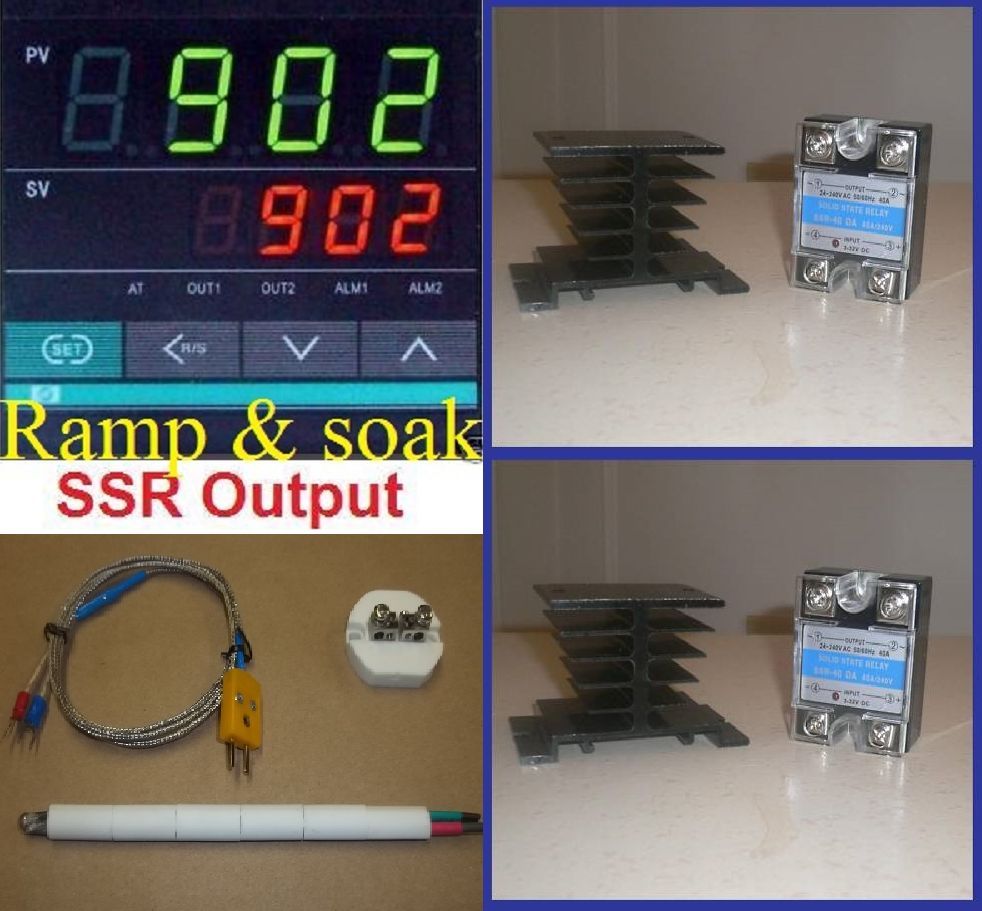

A Complete Applicable Package of Programmable Digital PID Temperature Controller Ramp and Soak , Kiln Probe Thermocouple/Sensor & 2 Solid State Relay (SSR) and Heat sink

Use this Ramp & Soak PID Programmable Controller when you wish to precisely control the temperature of a kiln/heater on certain timely cycles. Can be programmed for multiple profiles up to 60 segments (30 Ramps and 30 Soaks).

Applicable industries:

Annealing, Jewelry, Beer Brewing, Ceramics, Metallurgy, Petrochemicals, Kilns, Ovens, Furnaces and etc.

Features & Specifications

Available Segments	Up to 60 segments available for a program
Detective Temperature Range	-200 to 1800 °C (depends on input type)
Patterns	Be able to program different patterns with different segments
Input	Thermocouple: (K,S,E,J,T,B,N) RTD: (Cu50, PT100) Linear Voltage and current:0-5V,1-5V,0-1V,0-100mV,0-20mV,0-60mV,0.2-1V(100-500mV),-20 -+20mV(0-10V) -5V- +5V(0-50V), -100 - +100mV(2-10V) Linear Resistor:0-80 Ohm, 0-400 Ohm
Output	SSR output
Control action	Heating , Cooling
Response time	Less than 0.5S (configurable)
Accuracy	0.2%FS+- 0.1C(Cu50 cooper resistor compensation or ice point compensation) 0.2%FS+0.2C (TC input and internal compensation)
Temperature drift	Less than 0.01%FS 0C (Typical value is 50ppm/0C)
Resolution	10C or 0.10C(automatically change to 10C when the temperature is higher than 999)
Display	Dual line - four digit - LED display
Decimal points	Configurable for all inputs
Control Method	ON/OFF AI MPT with auto tuning, adopting fuzzy logic PID algorithm
Auto/Manual Control	Auto/manual bump less transfer from front panel
Auto-tuning	Auto-tuning and manual tuning available
Alarm Mode	Absolute value high limit, Absolute value low limit, Deviation high limit alarm, Deviation low limit alarm.
Alarm stand by	In some occasions, for example, in the heating process, when the alarm is set to as low deviation alarm, right after the power is turned on, the alarm will be triggered but there is no problem in the system, the alarm block function can solve this problem.
Soft start function	In some particular application, 100% output ratio is not allowed when the power just turned on; soft start function is a great feature to solve this problem.
Temperature display unit	Configurable between Fahrenheit and Celsius
Power Supply	90~260VAC
Dimension (DIN 1/16)	L 48mm x W 48mm x D 90mm (Horizontal)
Mounting	Panel Mount

High Temperature Kiln Thermocouple:

Thermocouple	Type K
Measuring Temperature	-58 to 2372 °F (-50 to 1300 °C)
Gauge	8
Thread material	Cr-Ni, Si-Ni
Thread diameter (ɸ)	3.2 mm (~0.13 inch)
Thread length	190 mm (~7.5 inch)
Tube length	~150 mm (~ 6.0 inch)
Tube diameter (ɸ)	Oval shape: L=12.3 mm & W=10mm (L~ 0.5” & W~ 0.4”)
Tube shape	6 x (1 inch) Pcs Ceramic Tube
Insulator	Two-hole insulator
