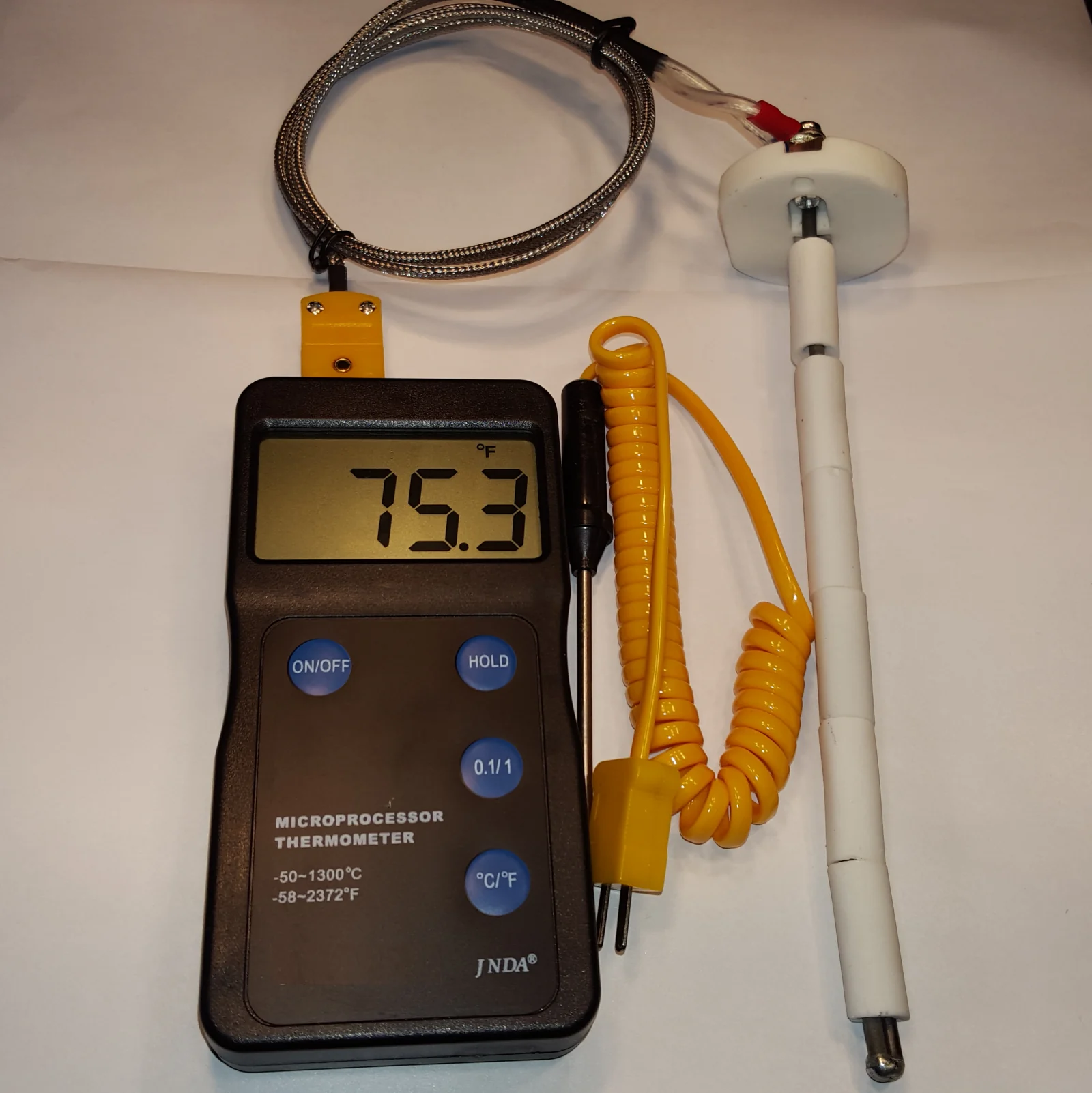

DP-6801 Digital Pyrometer with High-Temperature Ceramic Thermocouple - Top-Quality Temperature Measurement Tool

Description:

Elevate your temperature measurement capabilities with the DP-6801 Digital Pyrometer, featuring a high-temperature ceramic thermocouple. This versatile tool is designed for precise temperature readings in various industries. Included is an extra fast-responding test thermocouple, ensuring comprehensive temperature control.

Key Features:

High-performance and top-quality digital pyrometer.

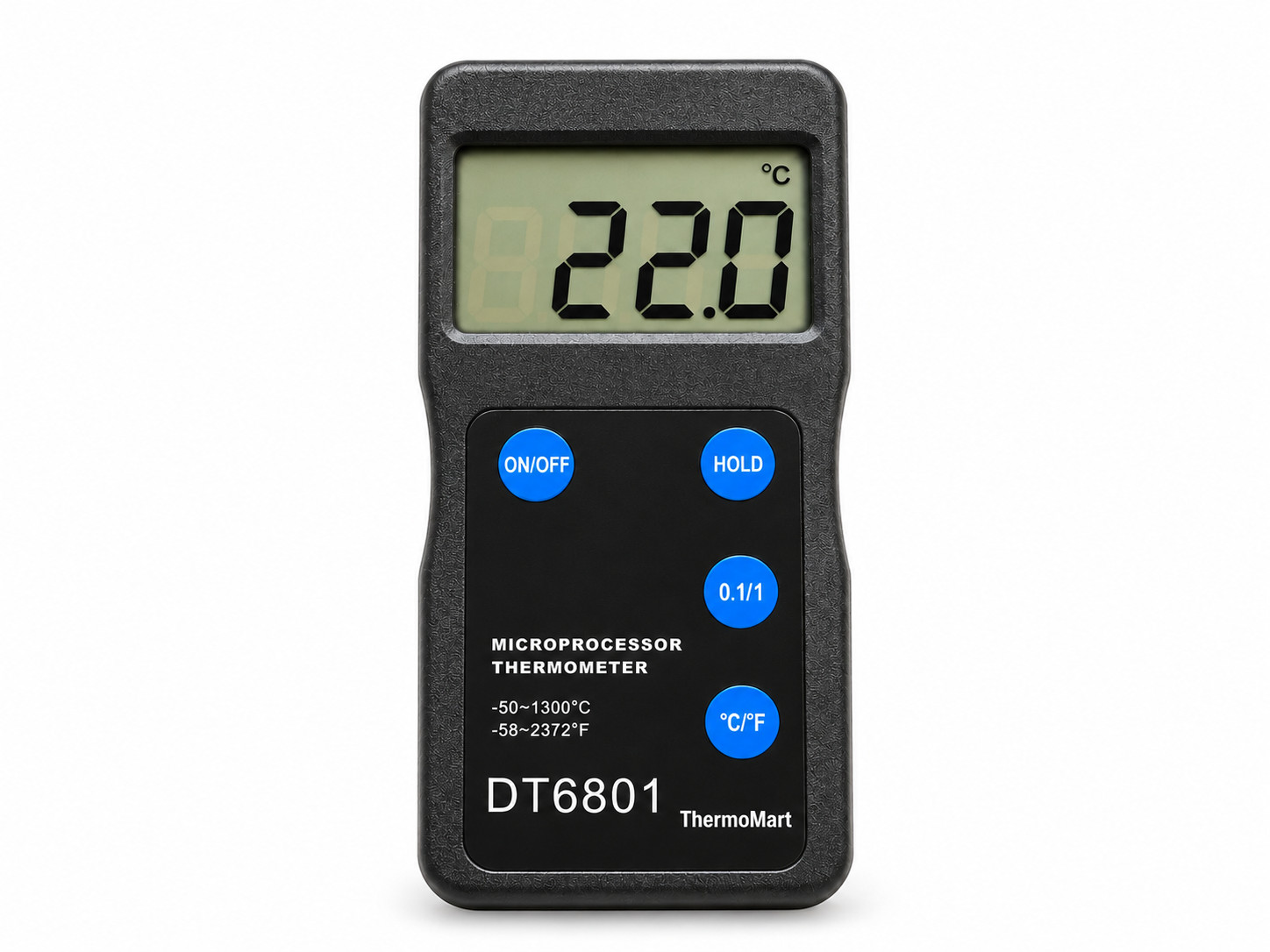

Large LCD display (2.2” x 1.25”) for effortless readings.

Compatible with any external K-type thermocouples.

Selectable temperature read-out in °F or °C.

Decimal display for precision.

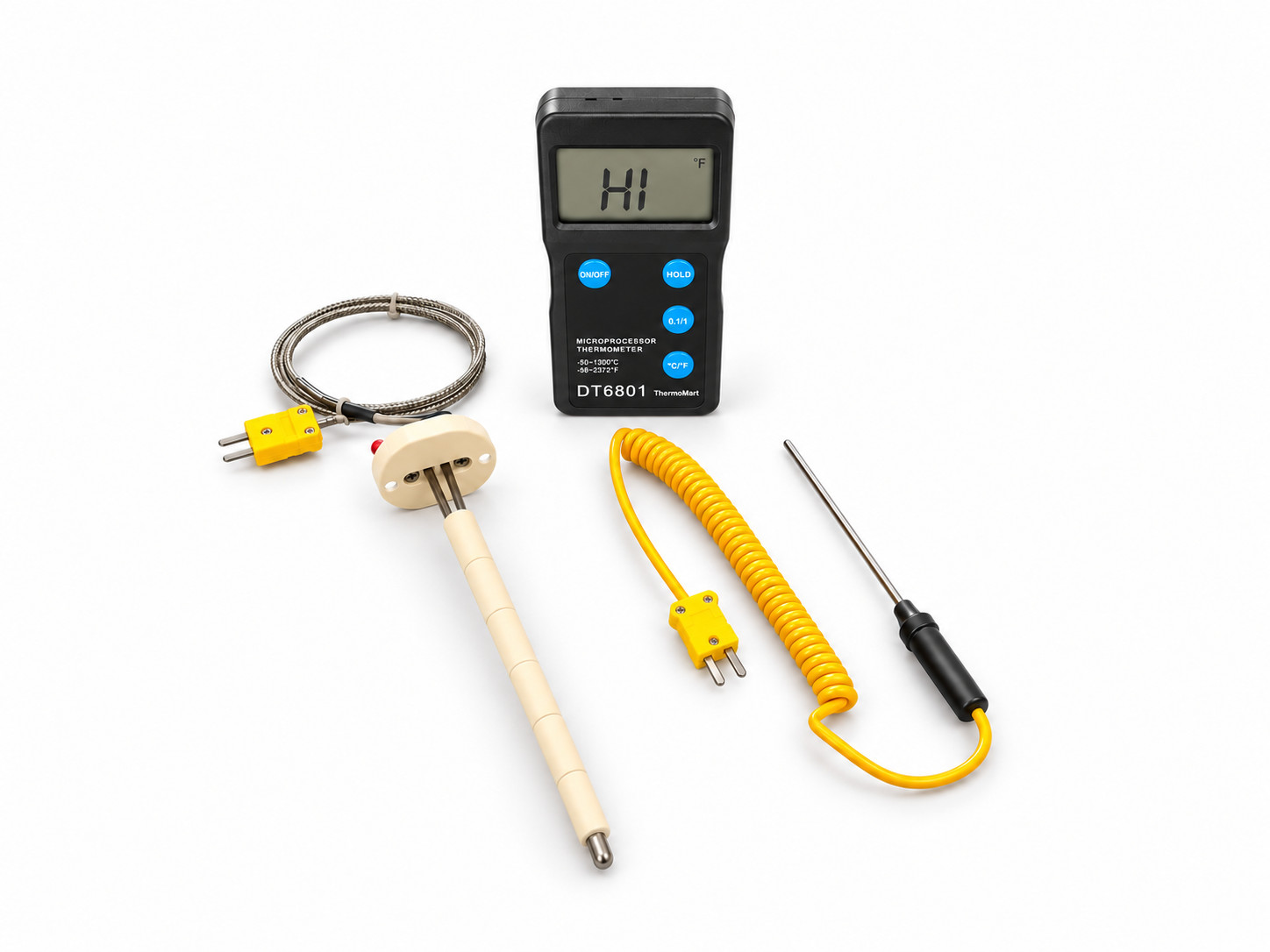

Overload display alert for measurements beyond the range.

Convenient data-hold function.

Specifications:

Temperature range: -50°C to 1300°C (-58°F to 2372°F).

Resolution: 1°C or 1°F.

Sampling rate: 2.5 times/sec.

Compact dimensions: 130 x 95 x 28mm.

Lightweight: 240g.

Powered by a standard 9V battery.

Thermocouple Specifications:

Type: K

Measuring Temperature: -58 to 2372 °F (-50 to 1300 °C).

Thread material: Cr-Ni, Si-Ni.

Thread diameter (ɸ): 3.2 mm (~0.13 inch), AWG 8.

Thread length: 190 mm (~7.5 inch).

Length: 150 mm (~6.0 inch).

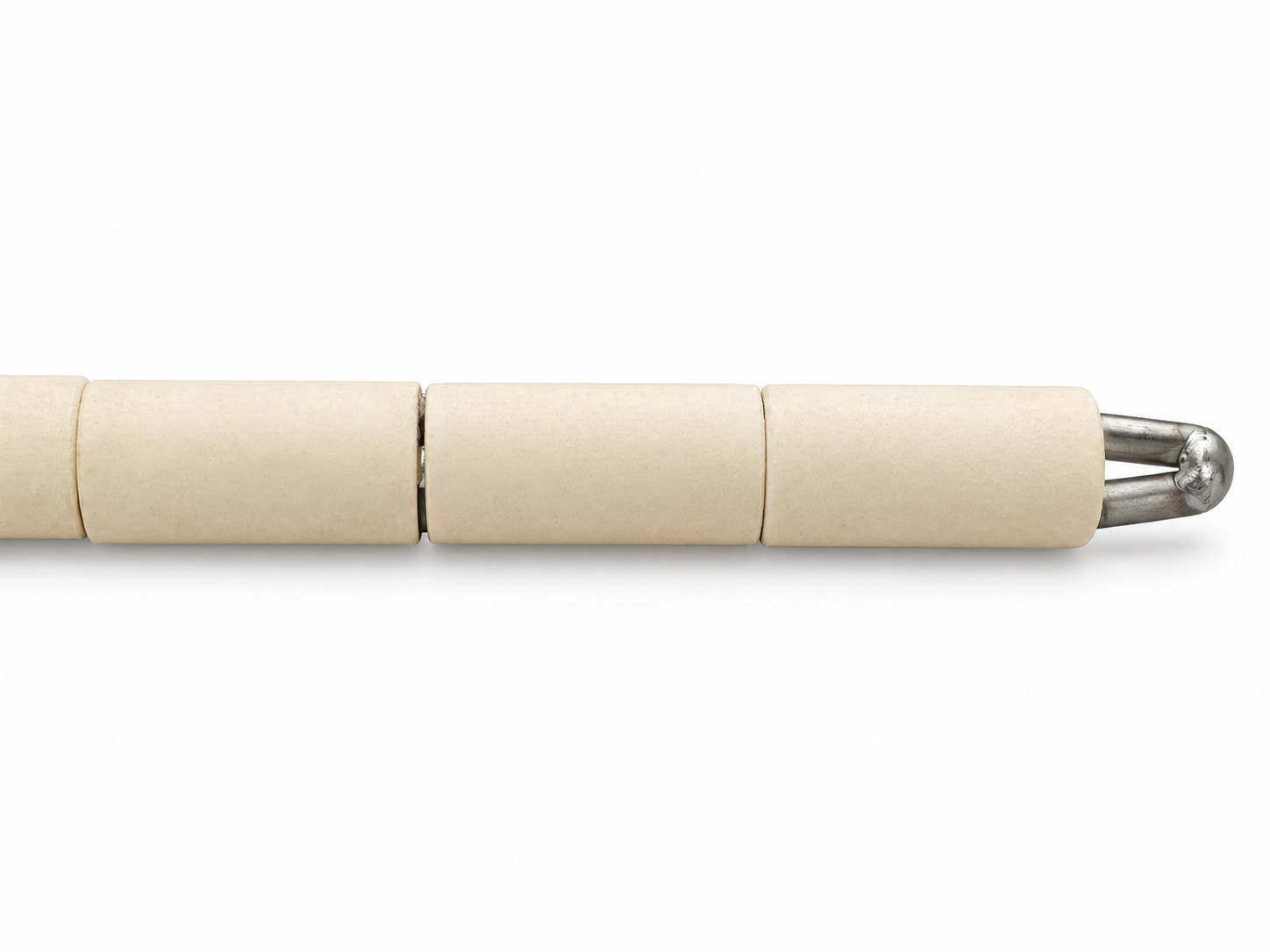

Ceramic diameter (ɸ): Oval shape: L=12.3 mm & W=10mm (L~ 0.5” & W~ 0.4”).

Ceramic shape: 6 x (1 inch Pcs) Ceramic Tube.

Insulator: Two-hole insulator.

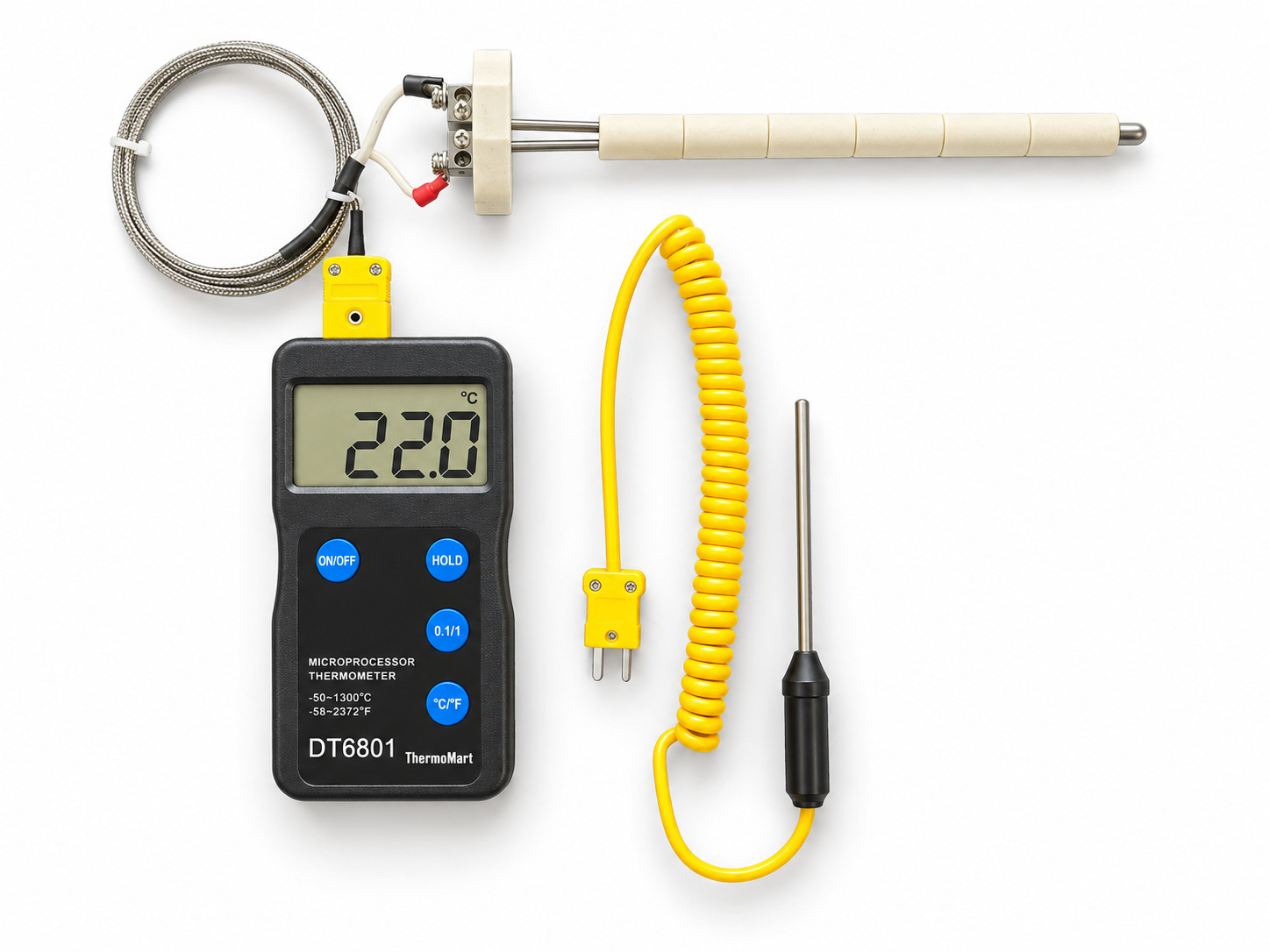

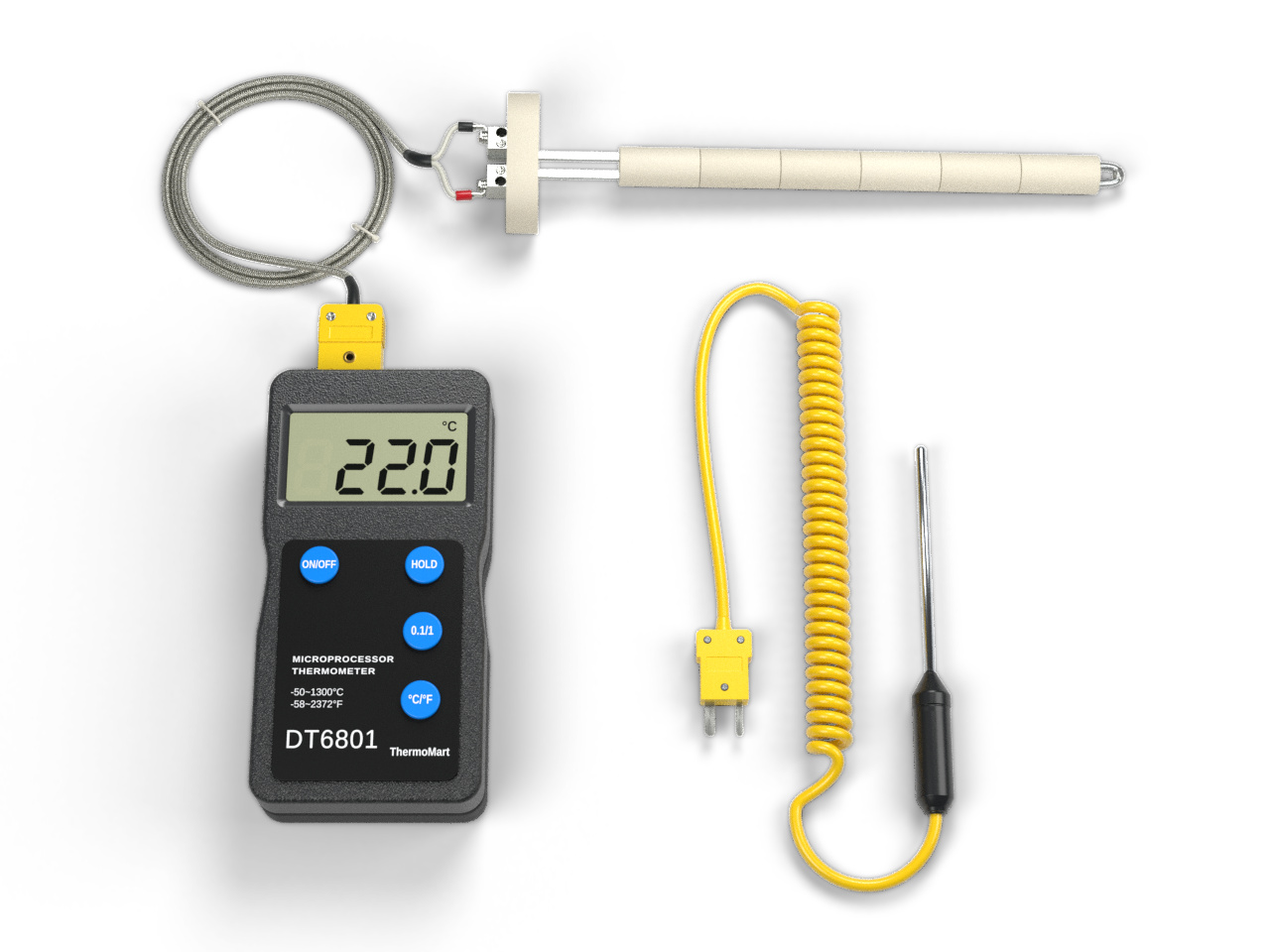

Package Includes:

1 x Digital Pyrometer.

1 x Kiln Ceramic K-type thermocouple (-50 to 1300°C) and One fast-responding K-type (-50 to 400°C).

1 x Operating Manual.

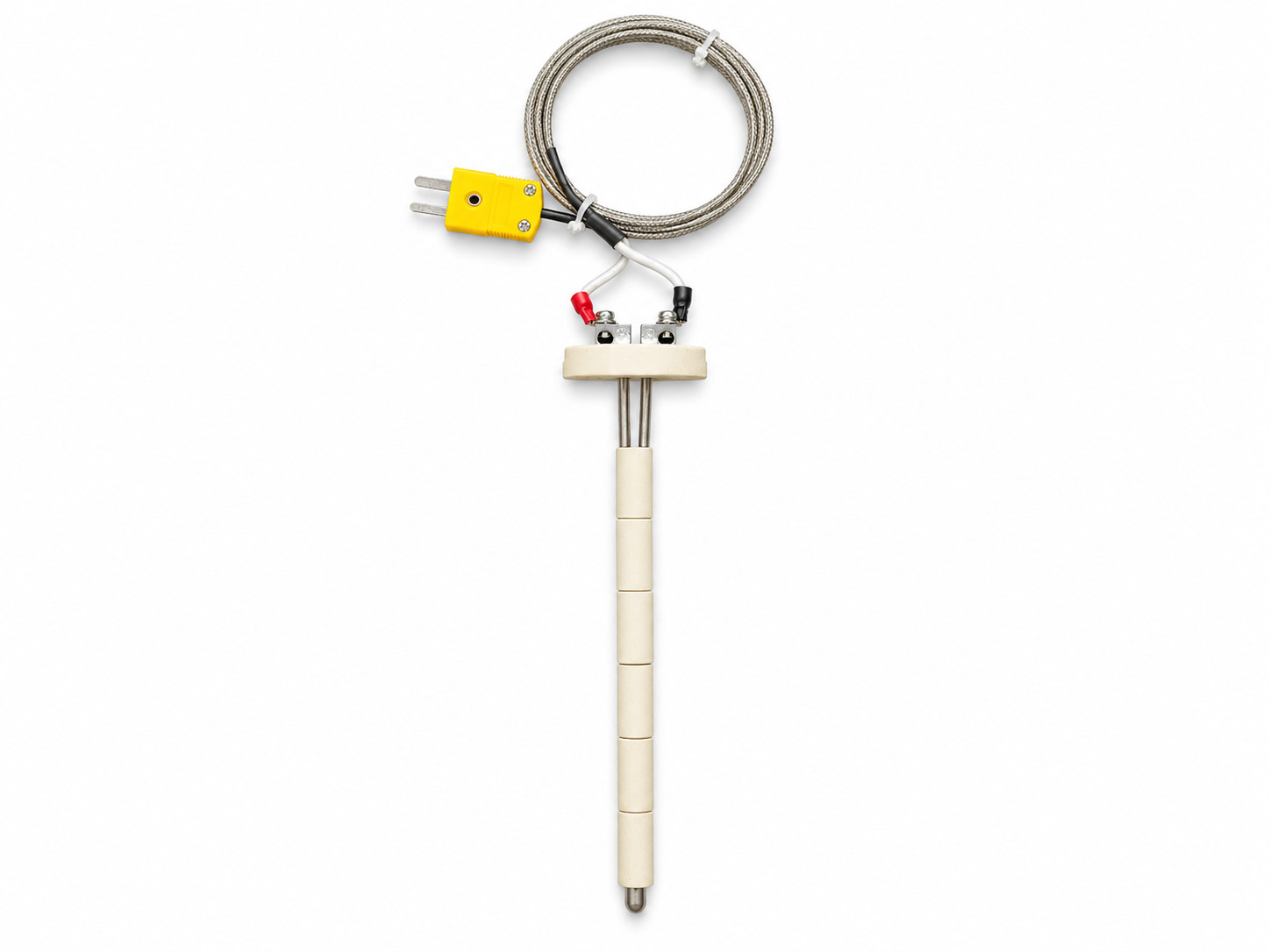

Thermocouple Assembling Tips:

Refer to the "Additional Images" section for assembly instructions. Ensure the removal of plastic tubes (red and black) from the thermocouple leads. Place the thermocouple precisely where temperature measurement is required. Ensure at least 2/3rd of the thermocouple length is inside the oven/kiln. Connect the thermocouple leads to the extension wire. Ceramic insulators separate thermocouple thread legs for accurate temperature readings. To prevent breakage, avoid sudden temperature changes or exceeding the temperature range. Handle with care during installation and removal, and secure the thermocouple to minimize vibrations.

Applications:

This digital pyrometer is equipped with 2 K-type thermocouples, catering to low and high-temperature applications. Ideal for Industrial Furnaces and Kilns, Metal Processing, Foundries, Aerospace Industry, Power Generation, Glass Manufacturing, Semiconductor Manufacturing, Research and Development, Ceramics Industry, Laboratory Applications, Automotive Industry, Plastics Processing, Incineration and Waste Management, Medical Equipment Manufacturing, and more.

In all these applications, the DP-6801 digital pyrometer with a high-temperature ceramic thermocouple guarantees accurate temperature measurement in demanding environments. Ensure product quality, process efficiency, and safety across industries with this reliable temperature control tool.
