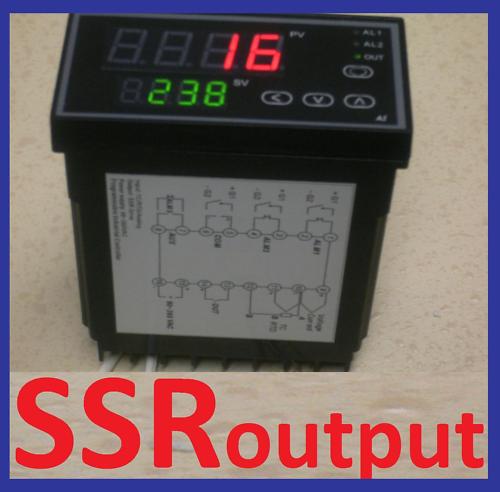

1/8 Din PID Temperature Programmable (Ramp & Soak) Controller with SSR output and universal type input with Fahrenheit and Celsius display

This controller has one of the complete temperature controllers in the market, it has a lot of functions like,

- Configurable between Fahrenheit and Celsius

- 30 Ramps and 30 Soaks and time can configurable between minute and second

- Equipped with differential gap, decimal point for all input, Auto tuning (with learning stop or start), alarm output configurable with 8 different options, system function (heating or cooling),......

Use this Ramp & Soak PID Programmable Controller when you wish to precisely control the temperature of a kiln/heater/cooler on certain timely cycles.

Can be programmed for multiple profiles up to 60 Ramps and soaks (30 segments for Ramp+

30 segments for Soak

).This controller is easy to program and comes with a user friendly manual.

Applicable industries:

Annealing, Jewelry, Beer Brewing, Ceramics, Metallurgy, Petrochemicals, Kiln, Oven, Furnace and etc.

The item includes: Ramp and soak controller + Manual

Features & Specifications:

High accuracy 0.2% FS
Configurable between Fahrenheit and Celsius
Up to 60 segments (30 ramps and 30 soaks)
Be able to run/stop/pause/jump the program
Built-in Switching Power Supply
Auto/Manual control switch from front panel
Configurable time-dominate or value-dominate controls
The time configurable between minute and second
Equipped with differential gap, decimal point for all input, Auto tuning (with learning stop or start), alarm output configurable with 8 different options, system function (heating or cooling),......

Available Segments	Up to 60 segments available for a program
Detective Temperature Range	-200 to 1800 °C (depends on input type)
Patterns	Be able to program different patterns with different segments
Input	Thermocouple: (K,S,E,J,T,B,N) RTD: (Cu50, PT100) Linear Voltage and current:0-5V,1-5V,0-1V,0-100mV,0-20mV,0-60mV,0.2-1V(100-500mV),-20 -+20mV(0-10V) -5V- +5V(0-50V), -100 - +100mV(2-10V) Linear Resistor:0-80 Ohm, 0-400 Ohm
Output	SSR output
Control action	Heating , Cooling
Response time	Less than 0.5S (configurable)
Accuracy	0.2%FS+- 0.1C(Cu50 cooper resistor compensation or ice point compensation) 0.2%FS+0.2C (TC input and internal compensation)
Temperature drift	Less than 0.01%FS 0C (Typical value is 50ppm/0C)
Resolution	10C or 0.10C(automatically change to 10C when the temperature is higher than 999)
Display	Dual line - four digit - LED display
Decimal points	Configurable for all inputs
Control Method	ON/OFF AI MPT with auto tuning, adopting fuzzy logic PID algorithm
Auto/Manual Control	Auto/manual bump less transfer from front panel
Auto-tuning	Auto-tuning and manual tuning available
Alarm Mode	Absolute value high limit, Absolute value low limit, Deviation high limit alarm, Deviation low limit alarm.
Alarm stand by	In some occasions, for example, in the heating process, when the alarm is set to as low deviation alarm, right after the power is turned on, the alarm will be triggered but there is no problem in the system, the alarm block function can solve this problem.
Soft start function	In some particular application, 100% output ratio is not allowed when the power just turned on; soft start function is a great feature to solve this problem.
Temperature display unit	Configurable between Fahrenheit and Celsius
Power Supply	90~260VAC
Dimension (DIN 1/8)	L 96mm x W 48mm x D 108mm (Horizontal)
Mounting	Panel Mount
