- This is a very practical and
inexpensive Type K thermocouple with a Very Fine Diameter Probe,
which can be bent easily or put under any surface or inserted in any
hole.
- Fine diameter probe
provides durability, fast and accurate temperature measurements.
- It measures
high temperatures up to 1112 °F (600 °C).
- Its Spring Strain Relief
prevents "pinching" of the wire and gives it
more flexible moving angles.
- Diameter of its high quality
probe is 0.06" (1.5mm) and is 5.90 inch
(150mm) long.
- Connector of this thermocouple will
work with Temperature Controllers.
- It's easy to clean and easy
to use.
- Typical applications include
testing and assessment of testing equipment parts, temperature
distribution analysis of ovens, LCD testing equipment, semiconductor
fabrication equipment, and automotive testing parts and also it can
measure many points in small surface area.
Specifications:
Thermocouple |
Type K |
Temperature range |
32 – 1112 °F (0 – 600 °C) |
Probe length |
150 mm (~5.90 inch) and flexible |
Probe diameter |
1.5 mm (~0.06 inch) |
Cable length |
1m (~3.3ft) |
Internal Insulation |
Fiberglass |
External Shielding |
Stainless Steel Braiding |

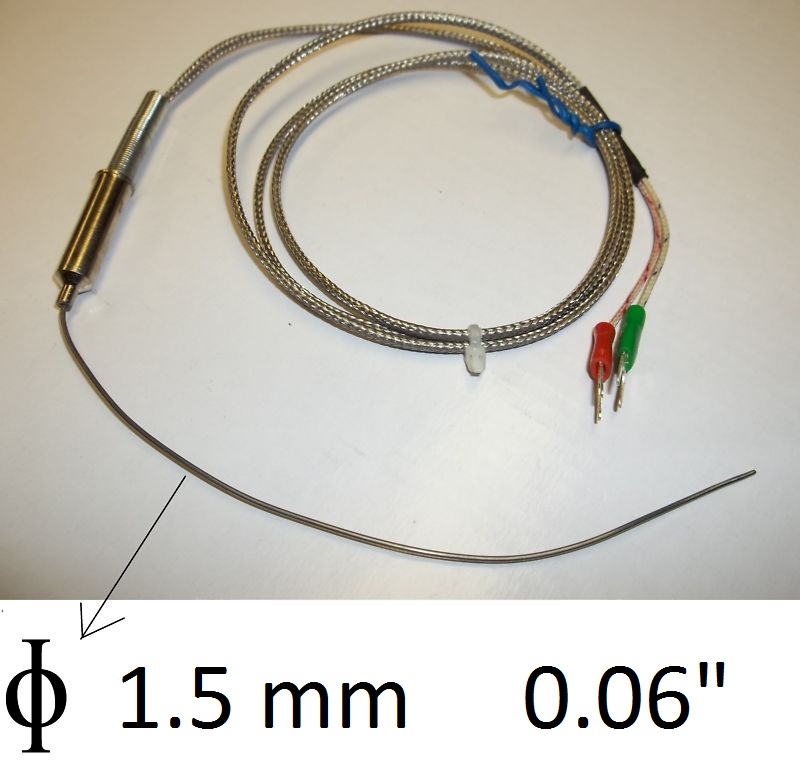

Fine K Thermocouple, Fast Response, Pin Point, Tapered Flexible Sensor for BGA Chip, LCD test, Jovy Soldering
- Product Code: FLX-1112
- Availability: In Stock
-
USD16.50
